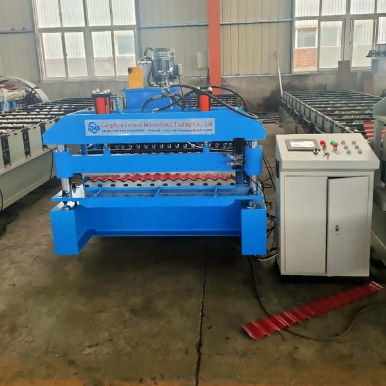

Name: Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: IBR ve Oluklu
Price: 28,000.00 USD
Availability: InStock

Evde > Ürünler > Roof top şekillendirme makinesi >

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

galvanized corrugated sheets machine

roof roll forming machine with warranty

standard corrugated sheets production line

Menşe yeri:

Çin

Marka adı:

cangzhou willing

Sertifika:

CE,ISO

Model numarası:

IBR ve Oluklu

Bizimle İletişim

Teklif Et

Ürün Ayrıntıları

Ürün Açıklaması:

IBR ve Oluklu Çatı Paneli Rulo Oluşturma Makinesi

Kalınlık:

0.2-0.8mm

şaft malzemesi:

malzeme 45 # dövme çeliğidir

Boyut (l*w*h):

6500*1550*1500mm

Kontrol sistemi:

Plc

Hız:

10-20m/dakika

Gerilim:

380V 50HZ 3PH

Ağırlık:

5,5 ton

Vurgulamak:

galvanized corrugated sheets machine

roof roll forming machine with warranty

standard corrugated sheets production line

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 set

Ambalaj bilgileri

Ana makine çıplak, bilgisayar kontrol kutusu plastikle doludur.

Teslim süresi

30 gün

Ödeme koşulları

T/T, Western Union

Yetenek temini

Ayda 30 Set

İlişkili Ürünler

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

En İyi Fiyatı Bulun

Video

Metal Çatı Kaplama için Oluklu Levha 0.3mm Çelik Kiremit Şekillendirme Makinesi

En İyi Fiyatı Bulun

Video

Metal Kiremit Trapez Rulo Şekillendirme Makinesi 5.5kw

En İyi Fiyatı Bulun

Video

Yüksek malzeme kalitesi C89 Hafif Ölçümlü Çelik Çerçeve Bina Rulo Yapım Makinesi

En İyi Fiyatı Bulun

Bizimle İletişim

86-317-2016816

Şimdi iletişime geçin

Ürün Tanımı

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

This 2 in 1 roof roll forming machine can make two different tiles drawings in one machine, which can save more space and money than using two different machines.

Equipment Detailed Parameters

Parameter	Specification
Suitable Material	PPGL, PPGI, PI, GI
Width of the raw material	1000mm
Rows of rollers	15 rows & 16 rows
Dimension	730015501200mm
Main servo	7.5kw
Hydraulic station power	11kw
Thickness of raw material	0.2-0.8mm
Productivity	15-20m/min
Diameter of shaft	￠70mm
Voltage	380V 50Hz 3phases
Frame	350H steel
Middle plate	16mm

Application

The double-layer tile machine is economical and can combine two roll forming machines into one. In other words, it saves floor space, and the equipment cost of a double-layer tile machine is much lower than that of two single-layer machines. The profiled plate rolled by the double-layer tile machine has no defects and is beautiful and novel. The appearance is flat, the corrugation is uniform, and the utilization rate is high.

Advantage

Cangzhou willing roll forming machine manufacturer, we have many years of industry experience in design, research and development and production of colored steel equipment. We have a qualified team, skilled talents and strong technical force in design, research and development, production, marketing and after-sales service. Strong independent research and development capabilities and production and processing equipment. The perfect after-sales service system has enabled our products to be well received by domestic and foreign customers.
