C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

light gauge steel roll forming machine

villa house roll forming machine

stud and track roll forming machine

Menşe yeri:

Çin

Marka adı:

FMS

Sertifika:

ISO CE

Model numarası:

C89

Bizimle İletişim

Teklif Et

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Ürün Ayrıntıları

Ürün adı:

C89 Roll Biçim Makinesi

Boyut (l*w*h):

6800 mm*1000 mm*1500 mm

Hammadde:

Galvalüm, Galvanizli

Çalışma hızı:

20 m/dk - 25 m/dk

Renk:

Beyaz

Teslimat:

45 iş günü

Motor gücü:

7.5 kW

Konteyner yükü:

20 fit

Güç kaynağı:

380V, 60Hz, 3Faz

Profil:

C89

Kontrol sistemi:

Plc

Kesme uzunluğu doğruluğu:

± 2mm

Kesme sistemi:

Hidrolik

Malzeme kalınlığı:

0,8-1,2 mm

Gerilim:

380V

Vurgulamak:

light gauge steel roll forming machine

villa house roll forming machine

stud and track roll forming machine

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 set

Fiyat

negotiable

Ambalaj bilgileri

20 'FLC

Teslim süresi

30 iş günü

Ödeme koşulları

L/C, T/T, D/A, D/P

Yetenek temini

Ayda 20 Set

İlişkili Ürünler

Roller Fixer Guide Column CU stud for Long-lasting Roofing

En İyi Fiyatı Bulun

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

En İyi Fiyatı Bulun

10-15m/min CU track Machine About 7.5m1.5m1.2m Design at 10-15m/min

En İyi Fiyatı Bulun

Video

Hızlı Hızlı Işık Çelik L Duvar Açısı Köşe Boncuk Rulo Şekillendirme Makinesi

En İyi Fiyatı Bulun

Bizimle İletişim

86-317-2016816

Şimdi iletişime geçin

Ürün Tanımı

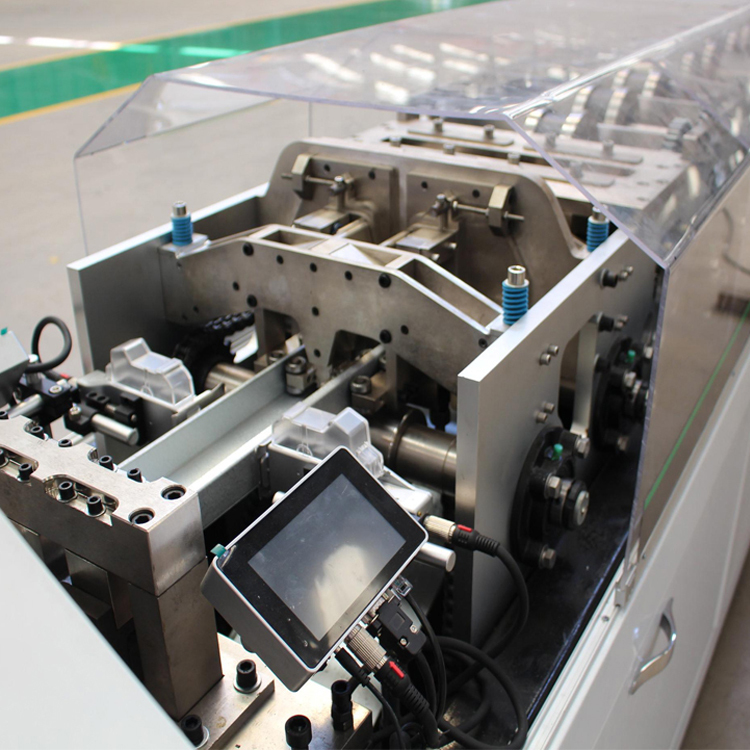

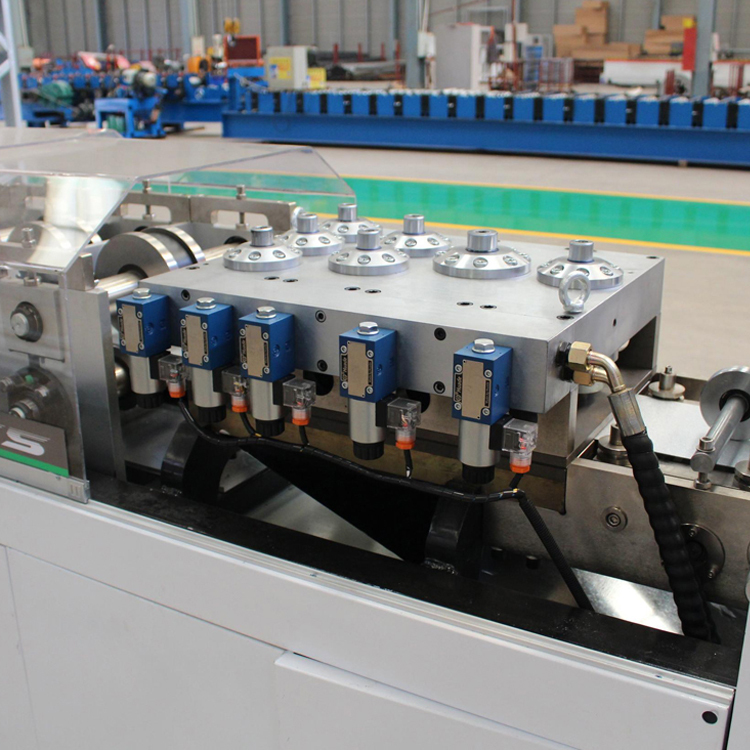

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

High speed Stud And Track Roll Forming Machine with flying cutting system

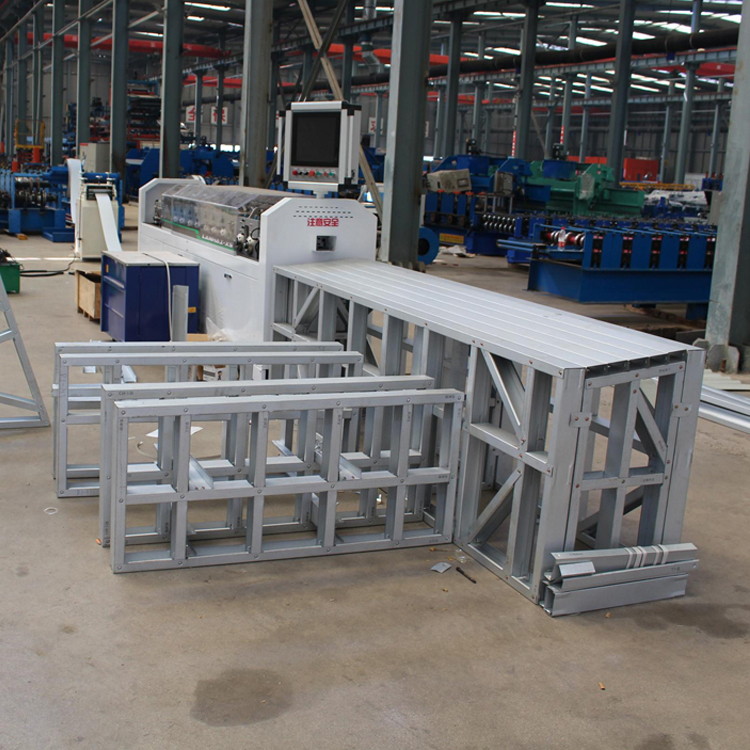

Light gauge steel villa stud cold-forming equipment is a type of roll forming machinery specifically designed to produce the primary structural components--the studs, tracks, and channels--used in Light Gauge Steel Framing (LGSF) for construction, particularly in modern villas and residential buildings. This equipment transforms continuous coils of galvanized steel sheet into precise, high-strength C-sections (studs), U-sections (tracks), and other custom profiles through a cold-forming process.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.5-1.2 mm
3	Working Speed	20-40 m/min
4	Roller Station	9 Raws
5	Dimension (LWH)	5800 mm1000 mm1500 mm
6	Machine Weight	2000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Advantage

Easy to operate
Long warranty

Payment terms

40% in advance as down payment by TT
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
