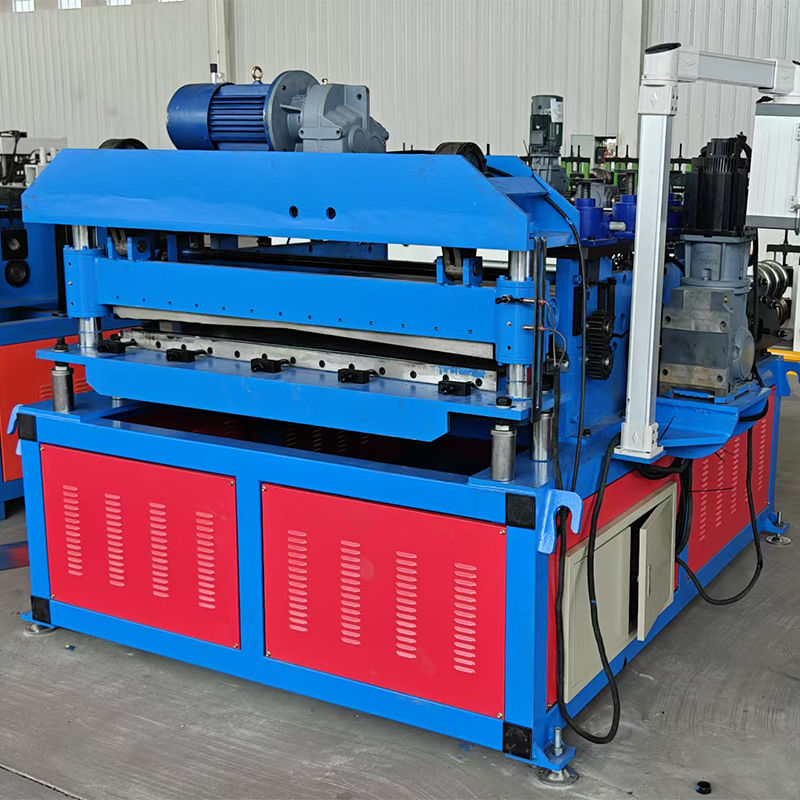

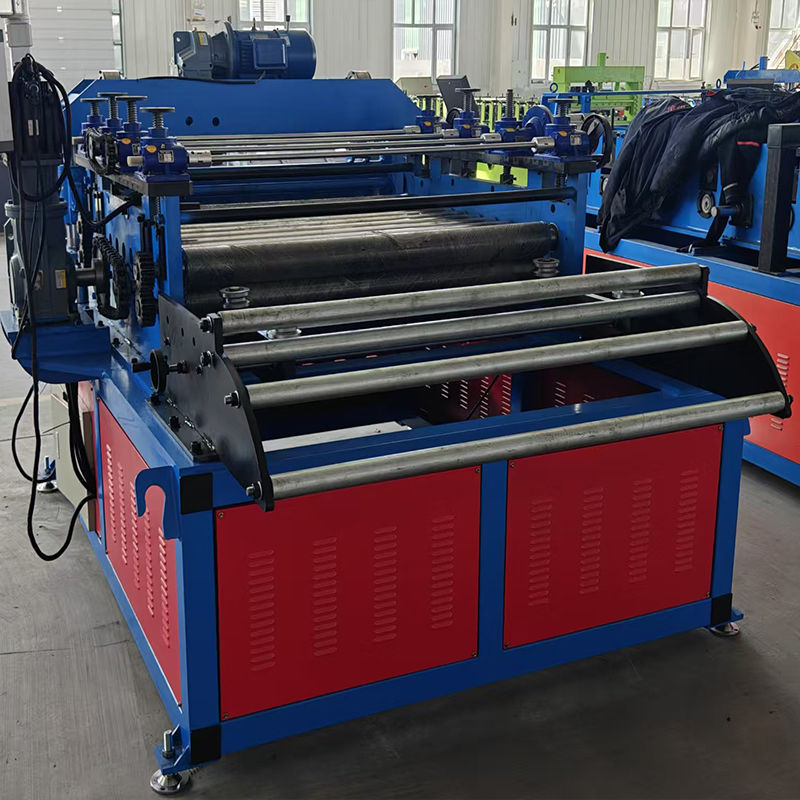

Name: Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Uzunlamasına kesmek
Price: 26,500.00 USD
Availability: InStock

Evde > Ürünler > Boy Kesme ve Dilme Hattı >

Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length

steel metal coil leveling machine

heavy thickness PPGI cut to length

1200mm width coil leveling line

Menşe yeri:

Çin

Marka adı:

CANGZHOU FMS

Sertifika:

ISO, CE

Model numarası:

Uzunlamasına kesmek

Bizimle İletişim

Teklif Et

Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length

Ürün Ayrıntıları

Ürün adı:

Çelik Metal Ağır Kalınlık Bobin Seviyesi 1.5mm 1200mm PPGI Kesme

Kesme malzemesi:

CR12MOV

Malzeme kalınlığı:

0.8mm -1.5mm

Çalışma hızı:

8m/dk - 20 m/dk

Bobin ağırlığı:

5 ton / 7 ton / 10 ton / 15 ton

Makine ağırlığı:

13000 kilo

Kesme Toleransı:

±2 mm

Vurgulamak:

steel metal coil leveling machine

heavy thickness PPGI cut to length

1200mm width coil leveling line

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 Takım Üretim Hattı

Fiyat

negotiable

Ambalaj bilgileri

2 Adet 40' FLC

Teslim süresi

60 iş günü

Ödeme koşulları

L/C, D/A, D/P, T/T

Yetenek temini

60 Günde 5 Set

İlişkili Ürünler

Video

çelik bobin 40m/dak Hızlı Dilme Hattı Makinesi Hidrolik Açıcı ve Sarıcı İle

En İyi Fiyatı Bulun

Video

40m/dak Hızlı Dilme Hattı Makinesi, Hidrolik Açıcı ve Sarıcı ile

En İyi Fiyatı Bulun

Video

380v 50hz Yüksek Hızlı Çelik Bobin Kesme Kesme Üretim Lini Makinesi Hidrolik Uncoiler ve Recoiler ile

En İyi Fiyatı Bulun

Video

Yüksek Hızlı Slitter Hidrolik Uncoiler ve Recoiler ile Slitter Slitting Line Makine

En İyi Fiyatı Bulun

Bizimle İletişim

86-317-2016816

Şimdi iletişime geçin

Ürün Tanımı

Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length

Product Description

Multi-Function Metal Coil Leveling Slitting And Cut To Length

Steel Coil Cutting-to-Length Lines are integrated systems of machinery designed to process large, master coils of steel into flat sheets. This process is fundamental in metal manufacturing, transforming coiled raw material into ready-to-use flat products for various industries.

These highly automated lines handle the three primary functions: uncoiling, levelling (straightening), and cutting.

Specifications

No.	Item	Description
Main Specification
1	Raw Material	Galvanized, Aluminum, Color steel, Hardness 235MPa - 485MPa
2	Raw Material Thickness	0.2 mm - 3.0 mm
3	Raw Material Width	600 mm - 1600 mm
4	Tape Inner Diameter	φ 480 mm - φ 530 mm
5	Tape Outer Diameter	φ 1600 mm
6	Coil Weight	5 tons - 10 tons
7	Brand	FMS
8	The Highest Slitting Line Speed	8 m/min - 30 m/min
9	Minimum Cutting Line Width	35 mm
10	Cutting Width Precision	± 0.01 - ± 0.05 mm
11	Rated Operational Voltage	380 V, 3 Phase, 60 Hz
12	Total Weight	14000 KG
13	Working Space (L*W)	20000 mm * 6000 mm
Decoiler Machine Specification
1	Tape Outer Diameter	Max φ 1600 mm
2	Tape Width	600 mm - 1600 mm
3	Tape Inner Diameter	φ 480 mm - φ 530 mm
4	Coil Weight	5 /7/10 tons
5	Max Working Speed	8 m/min - 30 m/min
6	Tape Tight Range	φ 480 mm - φ 530 mm
7	Shaft Diameter	φ180 mm
8	Roller Effective Length	1600 mm
9	Drive Motor Power	5 KW
10	Loading Car Diameter	φ 700 mm - φ 1500 mm
11	Loading Car Weight	5 /7/ 10 tons
12	Car Speed	About 4 m/min

Application

Used to cut the big coils into different width coils. The thickness can be 0.3-3mm GI PPGI, with a working speed that can reach 40 meters per minute. Maximum width of steel coils can be 1250mm.

Advantage

Cangzhou Famous Cold Roll Forming Machinery is a professional manufacturer and exporter that specializes in the design, development and production of cold roll forming machines.

Located in Botou City, all products comply with international quality standards and are greatly appreciated in various markets throughout the world, including Asia, Africa, Europe, South America, and Australia.
