Name: Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine Sandwich Panelproduction Line
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Sandviç Panel Rulo Şekillendirme Makinesi
Price: 40,500.00 USD
Availability: InStock

Evde > Ürünler > Sandviç Panel Rulo Şekillendirme Makinesi >

Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine Sandwich Panelproduction Line

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

Menşe yeri:

Çin

Marka adı:

FMS

Sertifika:

Model numarası:

Sandviç Panel Rulo Şekillendirme Makinesi

Bizimle İletişim

Teklif Et

Ürün Ayrıntıları

Teslimat süresi:

70mm veya ihtiyacınız olarak

Mil malzemesi:

Yüksek dereceli 45 # dövme çelik

Kesme Bıçağı:

Söndürülmüş İşleme Sahip CR12 Kalıp Çeliği

Şekillendirme Hızı:

5-8m/dk

Kesme bıçağı malzemesi:

Cr12MOV, Isıl İşlem

Güç kaynağı:

380V, 3 Faz, 50Hz

Şaft malzemesi:

Yüksek Sınıf 45# Çelik, Çap 70mm

Kalınlık:

0.3-0.8mm

Adımlar oluşturma:

11 istasyon

Güç:

5.5KW

Malzeme Genişliği:

1200mm

Vurgulamak:

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 TAKIM

Fiyat

negotiable

Ambalaj bilgileri

Plastik Film ile Çıplak.

Teslim süresi

45 dünya günü

Ödeme koşulları

T/T, L/C

Yetenek temini

ayda 20 takım

İlişkili Ürünler

Video

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

En İyi Fiyatı Bulun

Video

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

En İyi Fiyatı Bulun

50-300 Thickness Sandwich Panel Roll Forming Machine with Lichao Motor and 32KW Hydraulic Motor Power

En İyi Fiyatı Bulun

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

En İyi Fiyatı Bulun

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

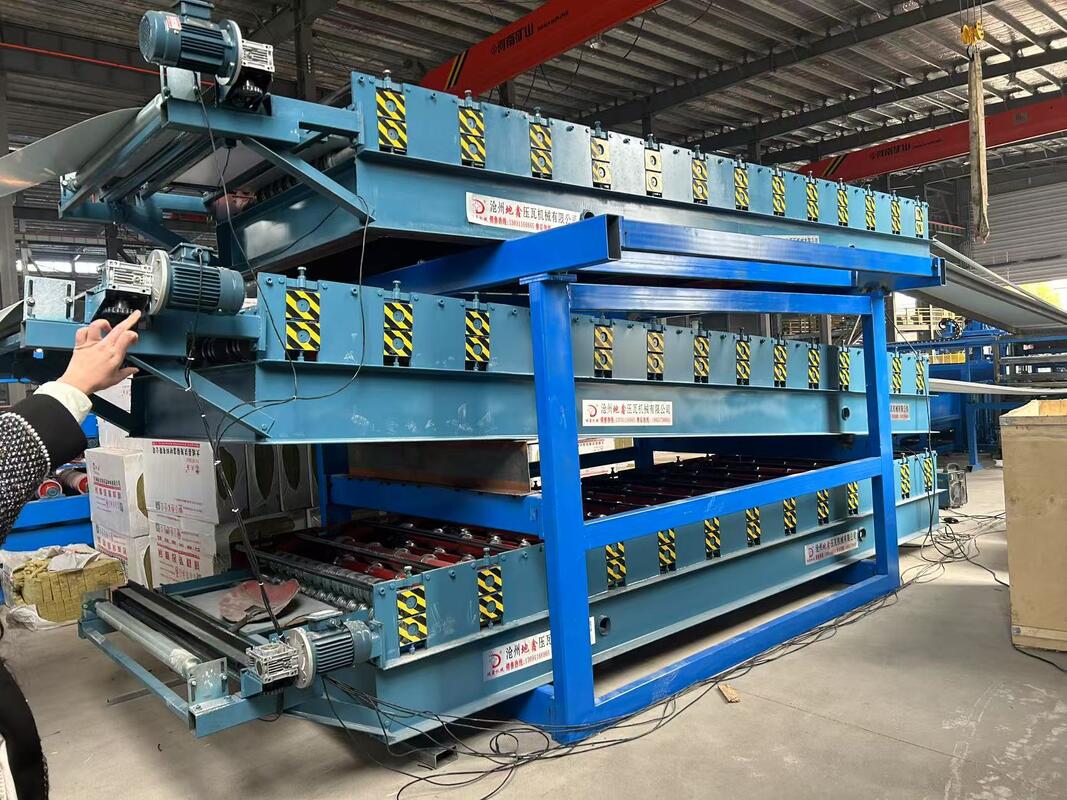

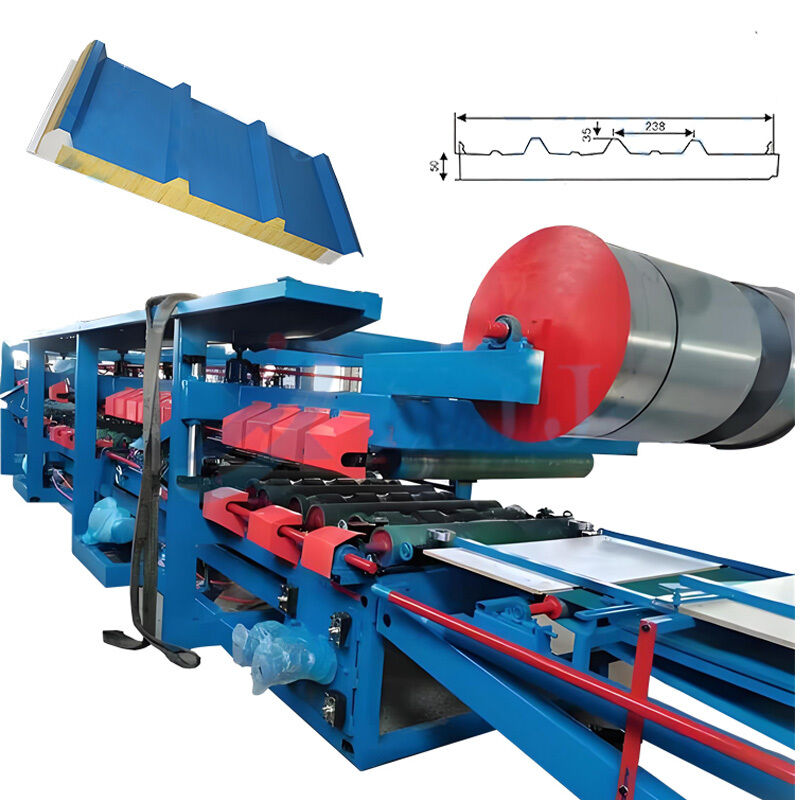

Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine

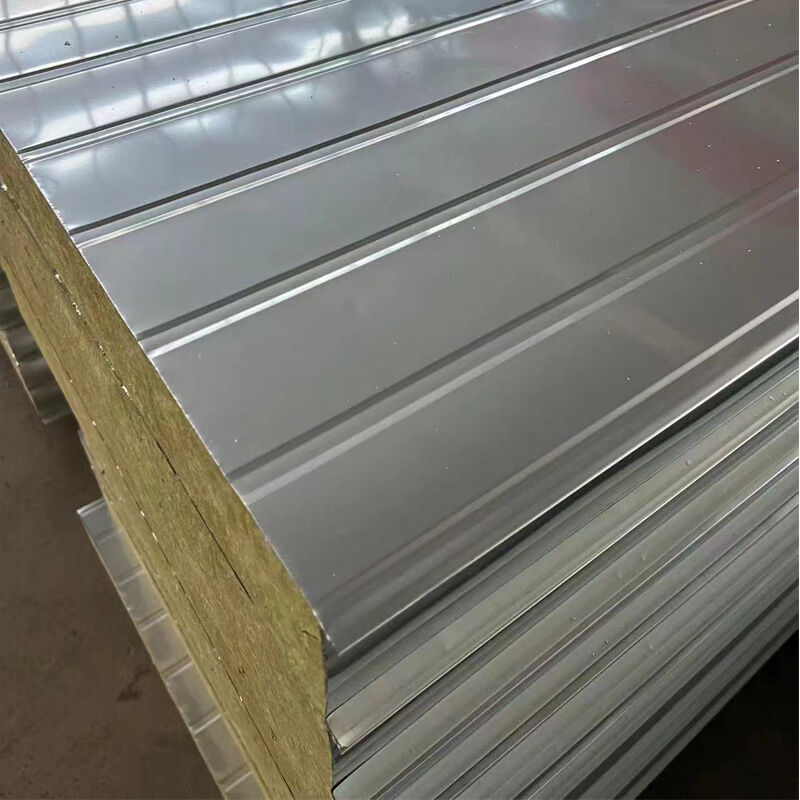

This advanced production line is designed for manufacturing EPS rock wool composite boards, a widely used building insulation material for walls, roofs, and floors. The automated system ensures efficient production of high-quality sandwich panels.

Production Process Overview

EPS Board Processing: Precision cutting and trimming operations
Rock Wool Processing: Accurate cutting and systematic paving
Composite Bonding: Hot or cold pressing to bond materials
Final Molding: Formation of specification-compliant composite boards

Equipment Components

EPS Board Processing Unit: Cutting and trimming systems
Rock Wool Processing Unit: Cutting and paving mechanisms
Composite Unit: Bonding and pressing systems
Molding Unit: Final shaping and sizing equipment
Control System: Automated process control

Technical Specifications

Material of Shaft	70 mm 45# steel forged
Thickness Range	50-250mm
Working Speed	5-6m/min
Dimensions	Approximately 34000mm × 2500mm × 2600mm
Total Power	32 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	11/17 Rows

Warranty & Guarantee

1-Year Manufacturing Defect Guarantee (excluding electrical parts) from date of purchase.

Warranty Exclusions

Damage caused by natural disasters
Malfunctions due to user error
Issues resulting from unauthorized modifications
Problems occurring after relocation or shipment post-installation

Payment & Delivery Terms

Payment Structure: 40% advance payment, 60% balance before shipment
Delivery: FOB Tianjin Xingang Port
Lead Time: 65 days after receipt of down payment

Frequently Asked Questions

Does one machine produce only one style of panel profile?

No. For wider and double-layer making machines, it can produce more than 6 different types of panels.

What support is provided if the machine breaks down?

12-month warranty period. If parts cannot be repaired, we provide replacements (customer covers express costs). After warranty, we offer technical support and negotiated solutions for the equipment's lifetime.

Can you handle transportation?

Yes, we have extensive transportation experience. Please provide your destination port or address.

Are you a manufacturer or trading company?

We operate as both manufacturer and trading company.

Do you provide customization?

Yes, we design machines according to your requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.

How can I verify machine testing before shipping?

We provide testing videos for reference, or welcome you to visit our factory and test the machine personally.
